Product description:

The the universal Bluetooth kit for YT-M06:

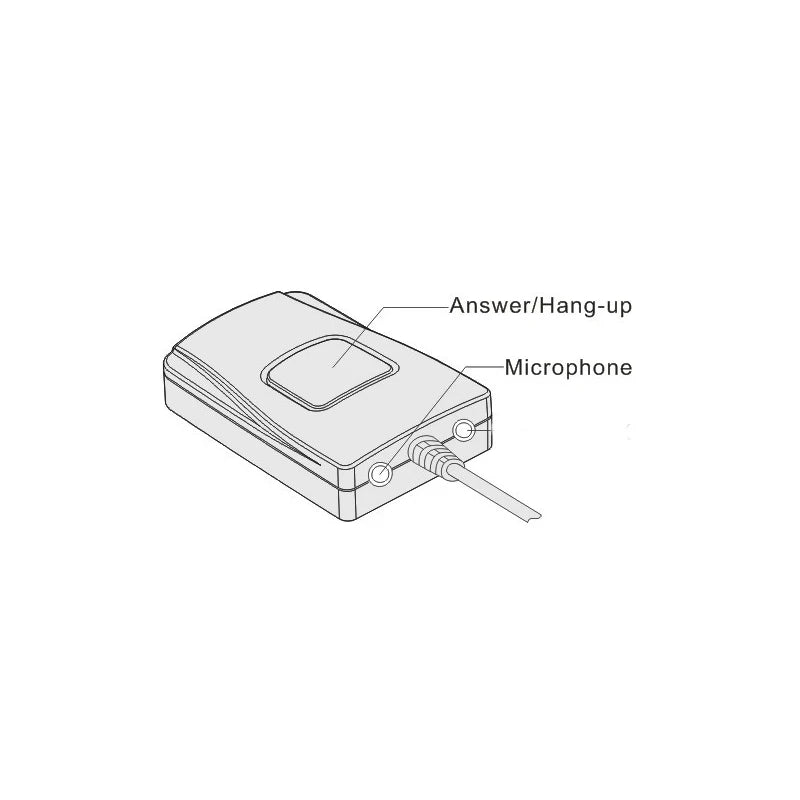

This is a universal additional kit (add-on accessories) for YT-M06, integrates Bluetooth Hands free (HFP) and Bluetooth Audio playback (A2DP) music streaming into your car stereo system. It supports operations of Answer/Hang-up phone call and Pause/Play A2DP playback via button on YT-BTM  or Seek+ button or Fast Forward button of radios

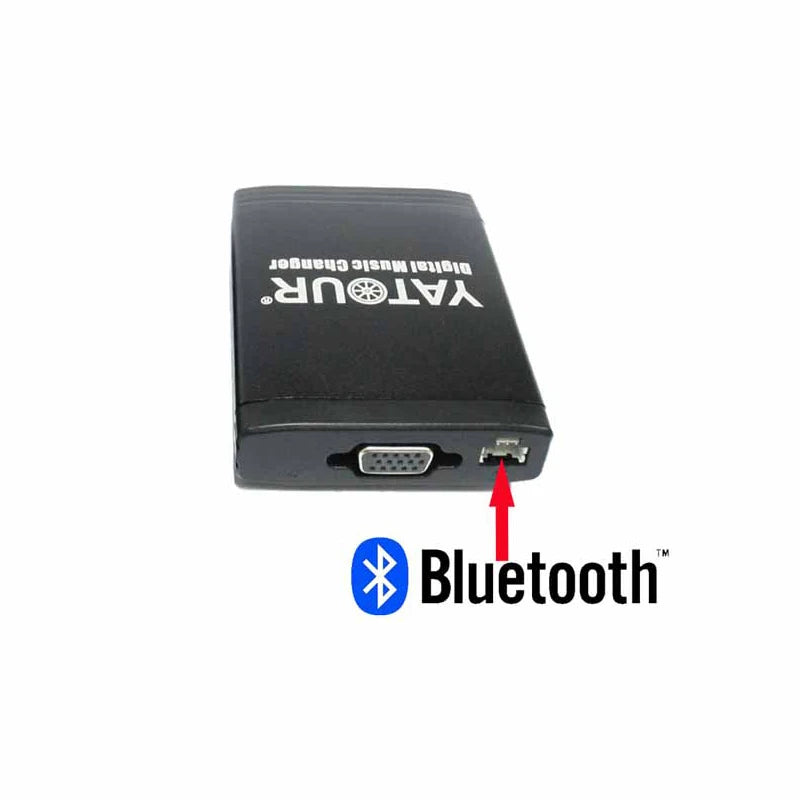

Yatour products Bluetooth Slot:

Features:
1. Hands free phone call via factory car stereo system.
2. Wireless Bluetooth A2DP music streaming into factory car stereo system.
3. Controlled via YT-BTM button,YT-REMO button, car radio button and Steering wheel button.
4. Excellent quality sound from radio speaker and from microphone for HFP and A2DP.
5.LED indicator continuously displays the working status of YT-BTM
6. Automaticly pauses when a phone call is made or received, then resume once the call has ended(Requires pressing CD button to resume A2DP playback on YT-M05).
7. Supports connected with only one Bluetooth device each time.
Supports Bluetooth enabled devices like iPhone,Android phone,other bluetooh capable phone ,bluetooth enabled GPS,etc.
8. Bluetooth distance limitation: 6-8 meters.
9. Bluetooth pairing needs to be performed only once.
After pairing is completed ,your phone will automatically connect to YT-BTM upon ignition start (whether radio on or off) or once your phone is back into discoverable distance.
10. No need to disconnect other audio sources to use Bluetooth.
Once YT-BTM is in use, other audio sources (USB/SD/iPod/AUX) will be automatically paused (except AUX) and muted.
11. Supports Bluetooth Voice Dialing .
Special for mobile phonessupportingvoice dialingoverBluetooth
12.compatible with Bluetooth version 2.1, and downward compatible with lower Bluetooth version

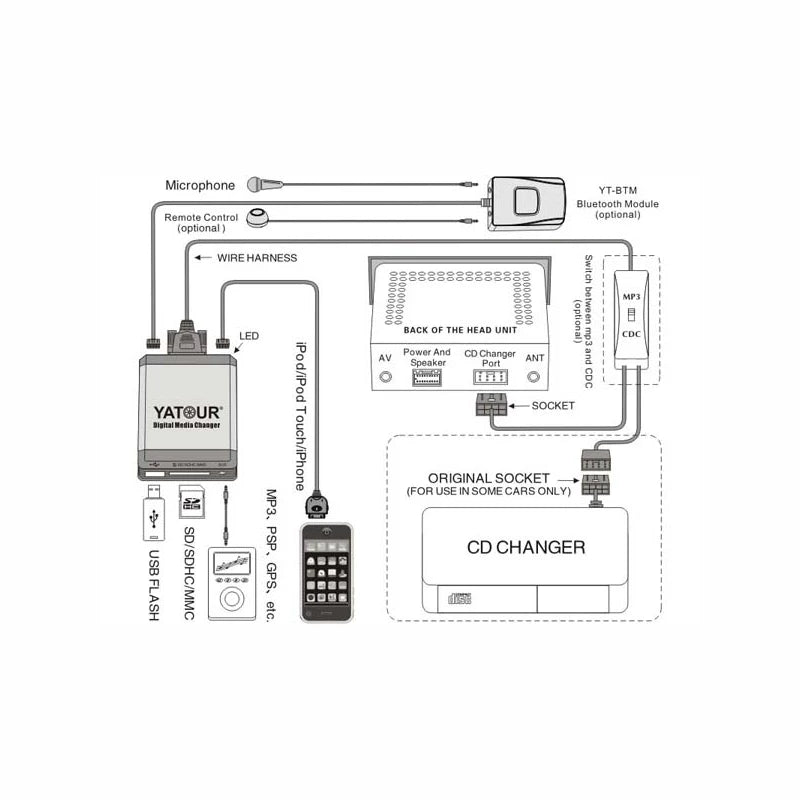

Installation Guidance:

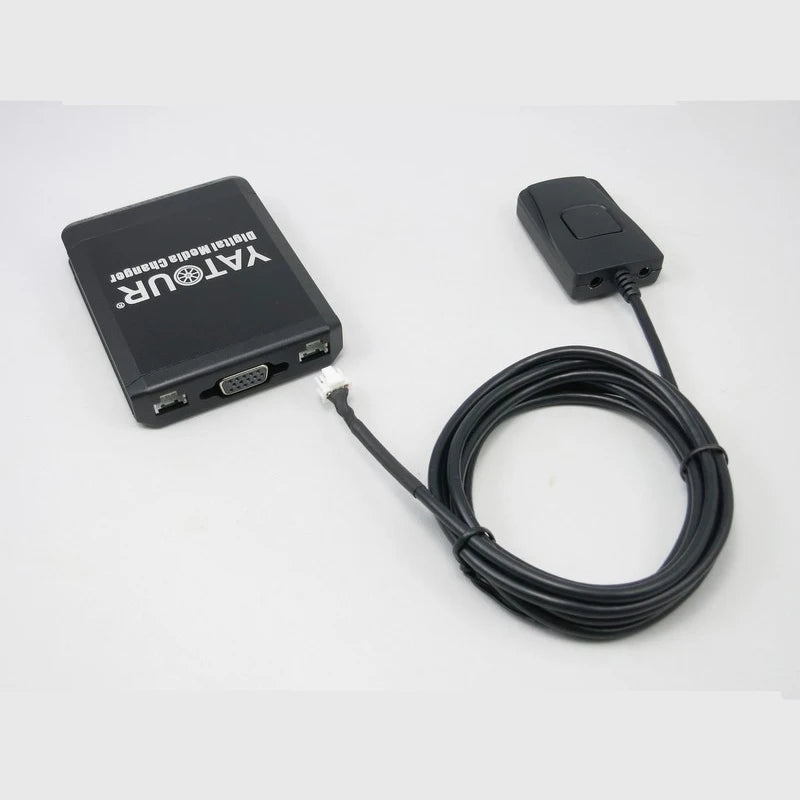

1. After finishing installation for Yatour YT-M06 , connect YT-BTM to bluetooth port of  YT-M06 . Mount the YT-BTM module away from metal structures as close to the phone as possible.
2. Then connect our microphone to microphone port of YT-BTM. Choose a proper mounting location for the microphone either on the upper part of A-pillar on driver side or near centre rear view mirror or head liner console control panels region. Avoid mounting the microphone by the side windows to eliminate extra noise. Please also avoid mounting behind visor to avoid blocking voice from reaching the microphone.
3. Carefully route the microphone cable down into the dash where the YT-BTM module is installed. Carefully arrange plugs at last.
4. Turn on the car stereo and switch to CD mode, then start to pair your mobile phone with YT-BTM.

How to pair BTM to your mobile phone:

Simply pair it with any Bluetooth enabled mobile phone, and it will allow you to make and receive calls hands free through your car stereo speakers. Also provides a separate microphone for added convenience and optimum sound quality. Music playing automatically pauses when a call is made or received and then :

Supports Bluetooth version 2.1 and lower version

Compatible with most Bluetooth-enabled phones.

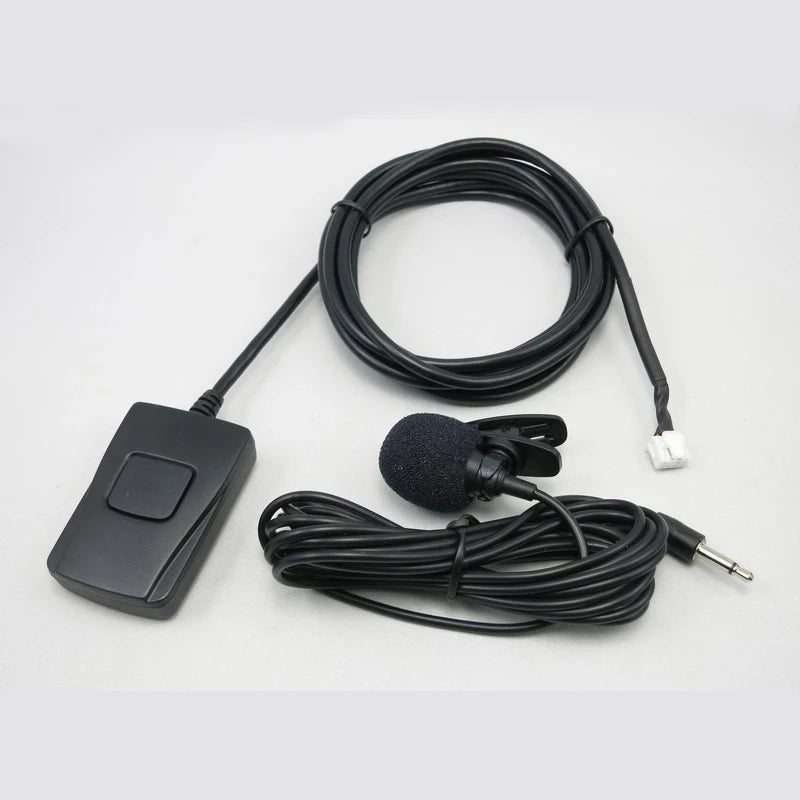

Includes:

• Module Unit*1(2 meters long)

• 3.5mm Microphone*1 (2 meters long)

• User Manual*1

Package: Color box

Size:

• Bluetooth module cable length: 200cm;

• Microphone cable length: 200cm

• Packing box: 150 x 105 x 60mm

• Gross weight:200g;

• 100units/big carton

•
